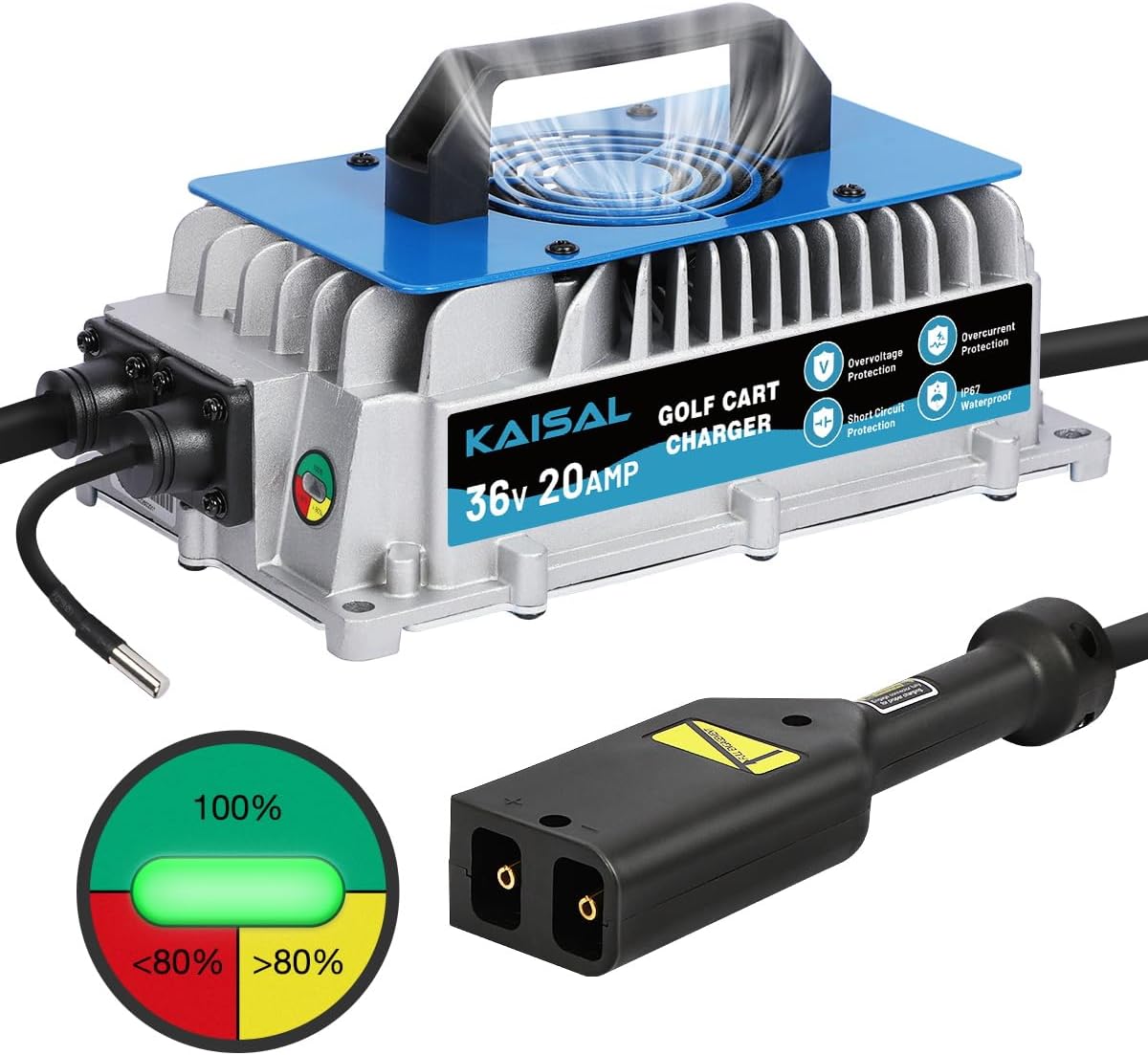

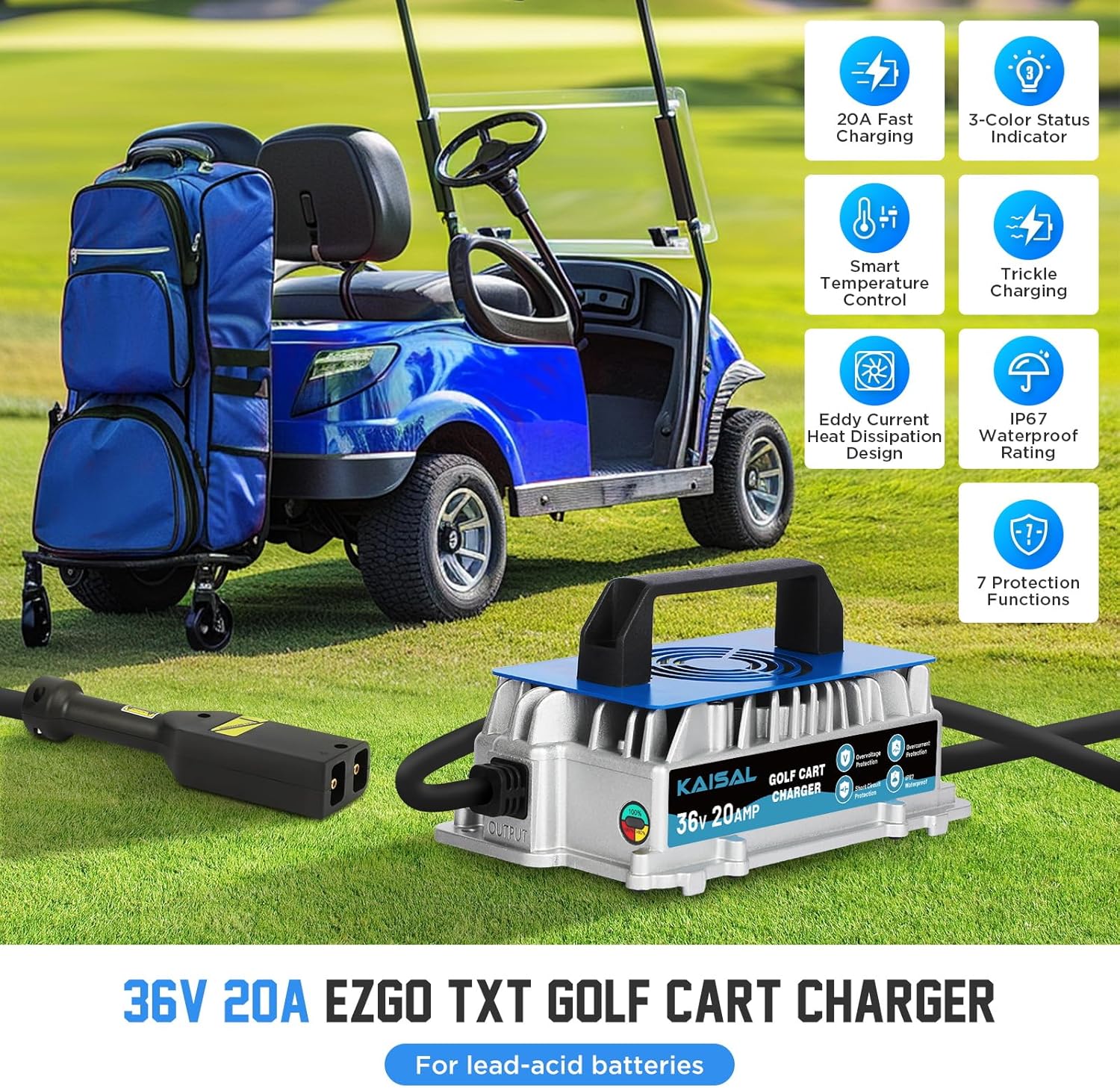

36 Volt Golf Cart Battery Charger for EZGO TXT, 20AMP 1250W EZ GO Golf Cart Charger IP67 Waterproof 36V 20A EZ GO Charger with EZGO TXT D-Plug, 4-6 hrs Full Charge, 16FT Cable, for Lead-Acid Battery

Overview

• Brand : KAISAL
• Product Dimensions : 9"D x 4.8"W x 4.5"H
• Item Weight : 7 Pounds
• Output Voltage : 36 Volts (DC)
• Input Voltage : 200 Volts

About this item

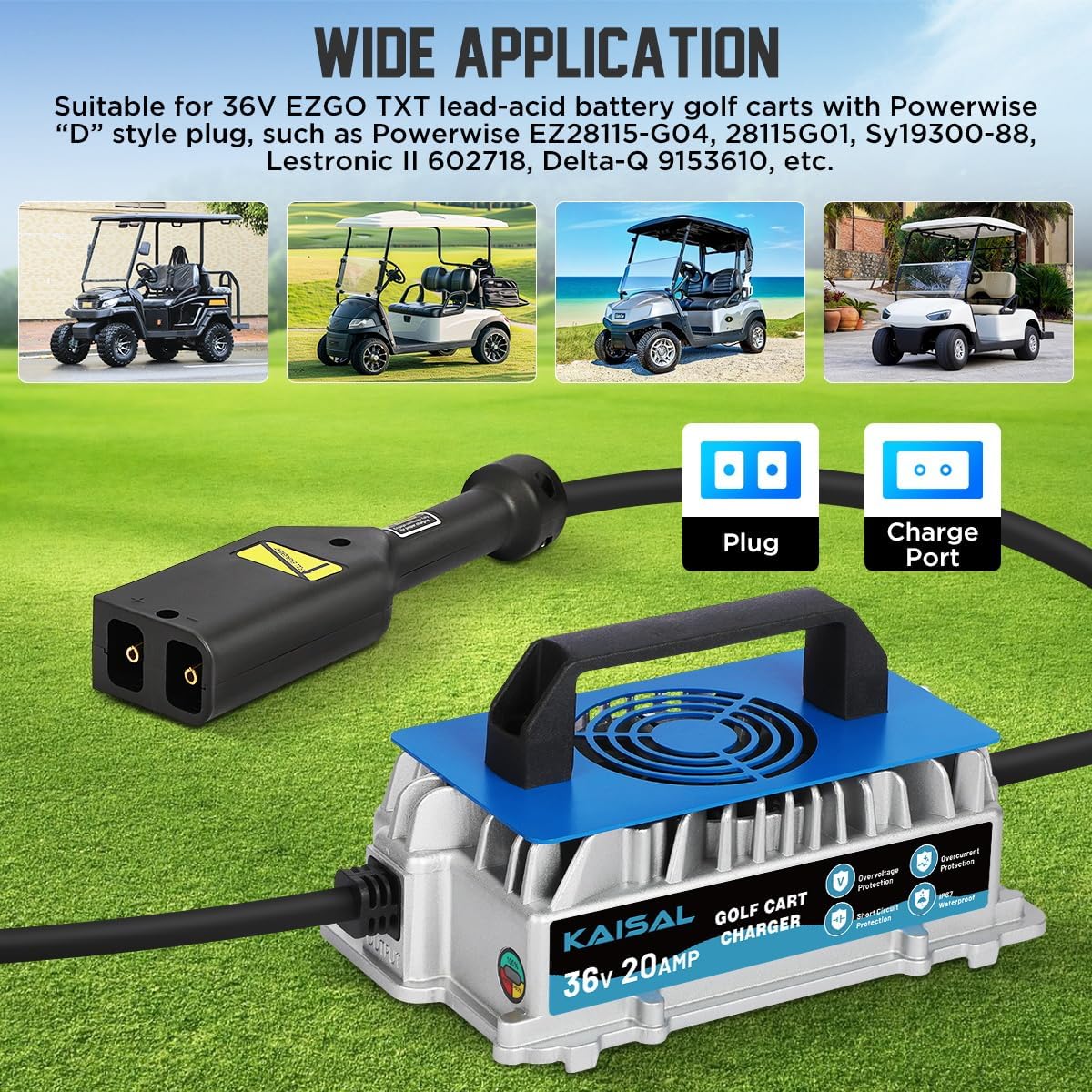

• 【Wide Application】Our 36 volt EZGO golf cart battery charger is widely used for 36V EZGO TXT golf carts with Powerwise "D" style plug, such as Powerwise EZ28115-G04, 28115G01, Sy19300-88, Lestronic II 602718, Delta-Q 9153610, etc. 36V ezgo golf cart charger is suitable for lead-acid batteries. Not suitable for lithium batteries.

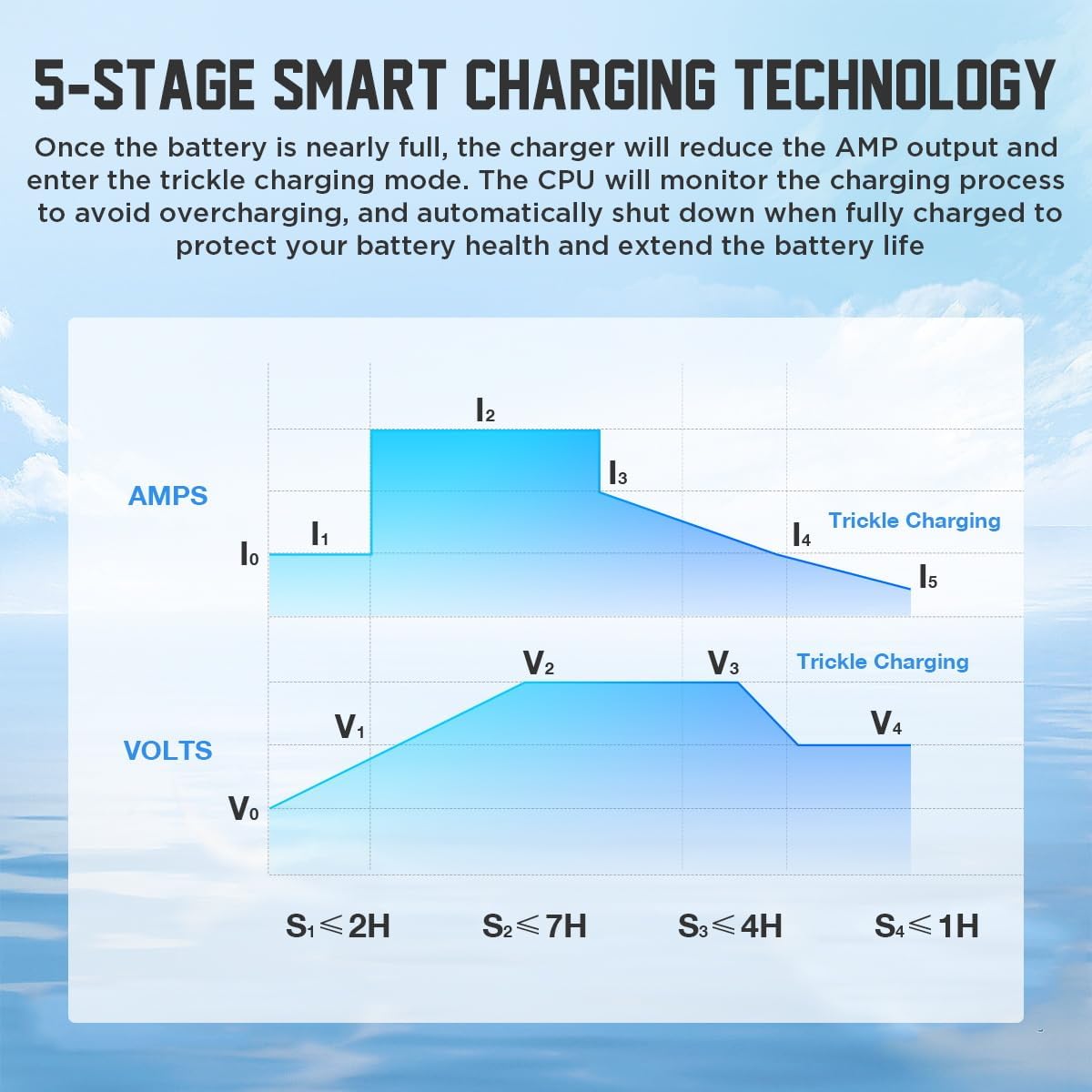

• 【36V 20A EZGO Fast Charger】Our 36V ezgo charger provides 20A fast charging speed, which can fully charge a 100AH battery in 6 hours, saving 15 hours than a 5A charger.It uses an advanced 5-stage intelligent charging technology.When the battery is nearly full, ezgo charger will reduce the AMP output and enter the trickle charging mode.The CPU will monitor charging process to avoid overcharging, and automatically shut down when fully charged to protect your battery health and extend battery life.

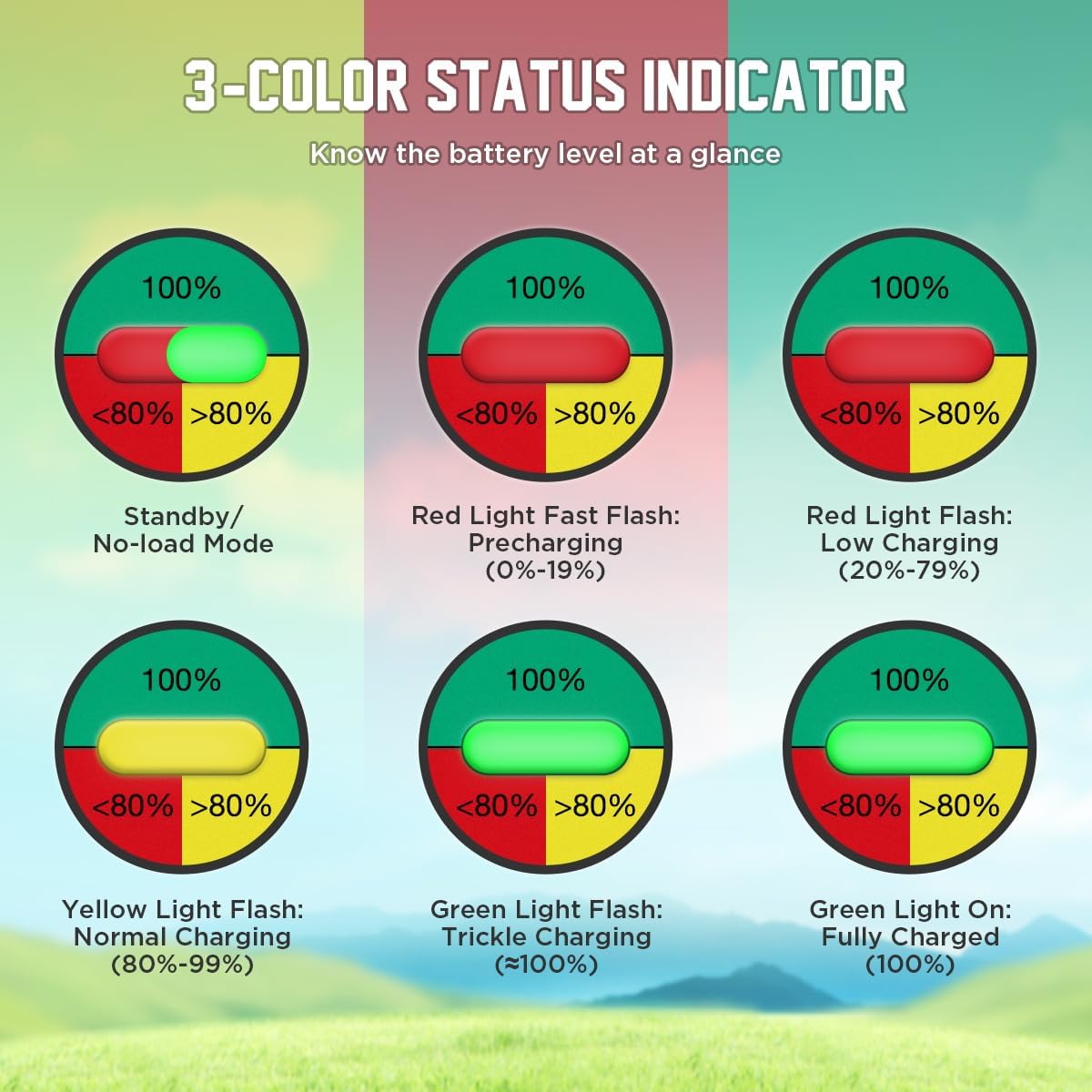

• 【3-Color Status Indicator】The 36 volt ezgo golf cart charger has a 3-color indicator light that help you to know the battery level at a glance. 1) Red Light Fast Flash: Precharging(<20%); 2) Red Light Flash: Constant current charging (20%~80%); 3) Yellow Light Flash: Constant-voltage limitary-current charging (>80%); 4) Green Light Flash: Trickle charging(≈100%); 5) Green Light is Always On: Fully charged (100%).
• 【Smart Temperature Control】Our 36V ezgo golf cart charger is equipped with a built-in temperature sensor, which can intelligently adjust the charging voltage according to the ambient temperature to achieve the best charging effect and protect the health of the battery. The ezgo charger 36 volt also uses a low-temperature charging chip to reduce the heat generated by the battery and charger during charging. Wide operating temperature range (-4°F~+113°F), adaptable to various working environments.
• 【Eddy Current Heat Dissipation Design】The 36 volt ezgo golf cart battery charger is equipped with a cooling fan, which is designed with eddy currents around it, which greatly improves the cooling efficiency and enables it to work stably.
• 【Timing Charging Protection】The 36V ezgo golf cart charger has software timeout protection settings. If it works continuously for more than 15 hours, it will automatically stop working to prevent damage to the battery and charger. Normal charging can resume until the power plug is unplugged and reconnected. Our 36V ezgo txt charger also has 6 other protection functions: Overvoltage/Overcurrent/Overheating/Short-circuit/Reverse Connection/No-load protection, greatly improving safety performance.
• 【16FT Long Cable & Lightweight】The 36v golf cart charger ezgo comes with a 16FT extra long cable (10ft input cable + 6ft output cable), providing great flexibility without the need for additional extension cords. Integrated cable plug minimizes problems with ezgo txt socket failure due to poor contact. The 36V ezgo golf cart charger weighs only 7 pounds and can be carried anywhere.

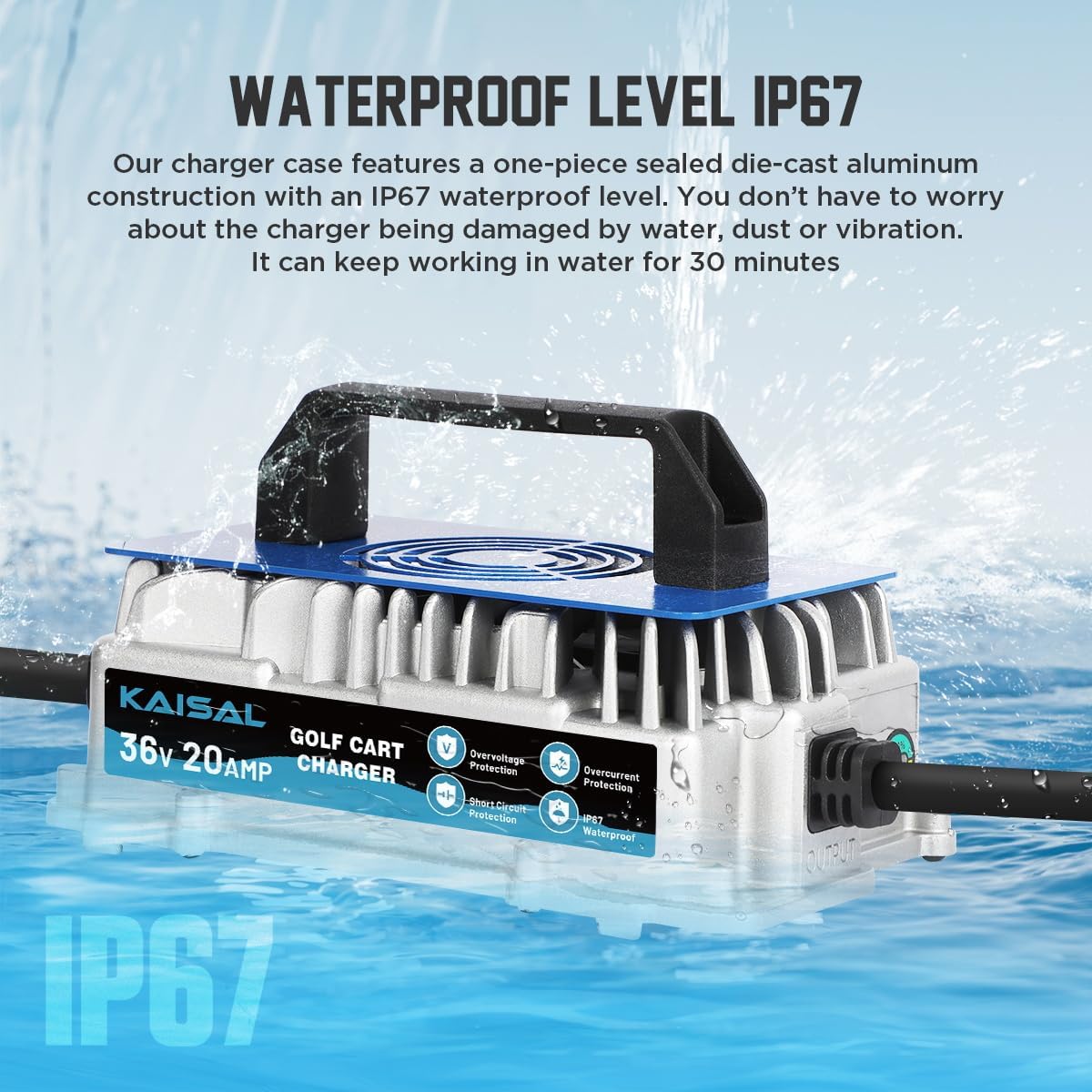

• 【IP67 Waterproof & FCC ETL Certification】36 volt ezgo charger case features a one-piece sealed die-cast aluminum construction with IP67 waterproof rating.You don't have to worry about the charger being damaged by water, dust or vibration,making it perfect for outdoor use.It adopts PFC and LLC technology and is FCC and ETL certified,providing you with safer charging, lower energy consumption, higher conversion efficiency,better load capacity, less electromagnetic radiation interference and noise.
• 【3-Year Product Service & 100% Full Loading Aging Test】We KAISAL aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. Our 36V ezgo golf cart charger all pass 100% full load aging test. We promise 3-year product service. For quality problems caused by non-human damage, please feel free to contact us. We will provide free replacement 48V lithium battery charger after confirmation.
