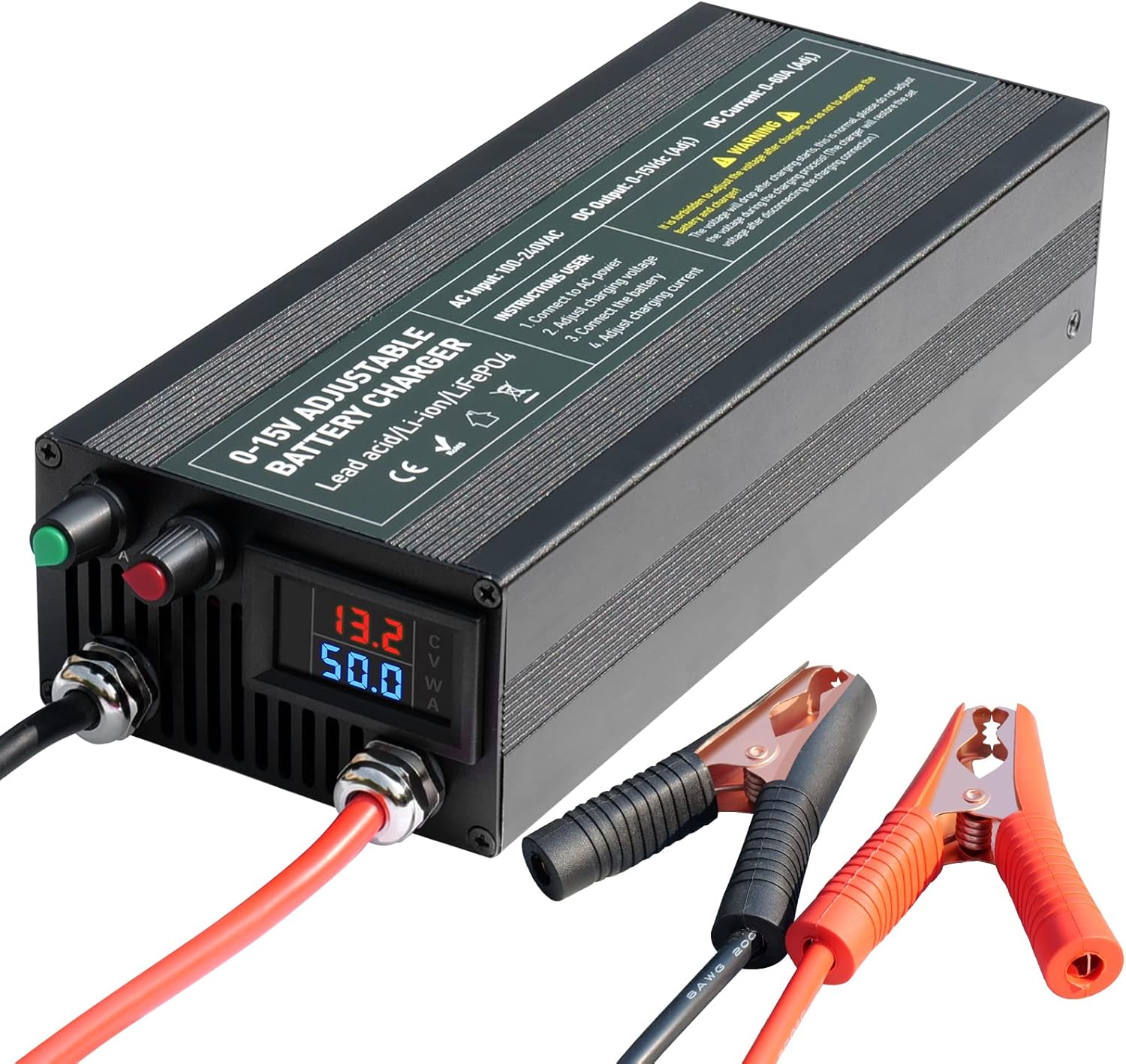

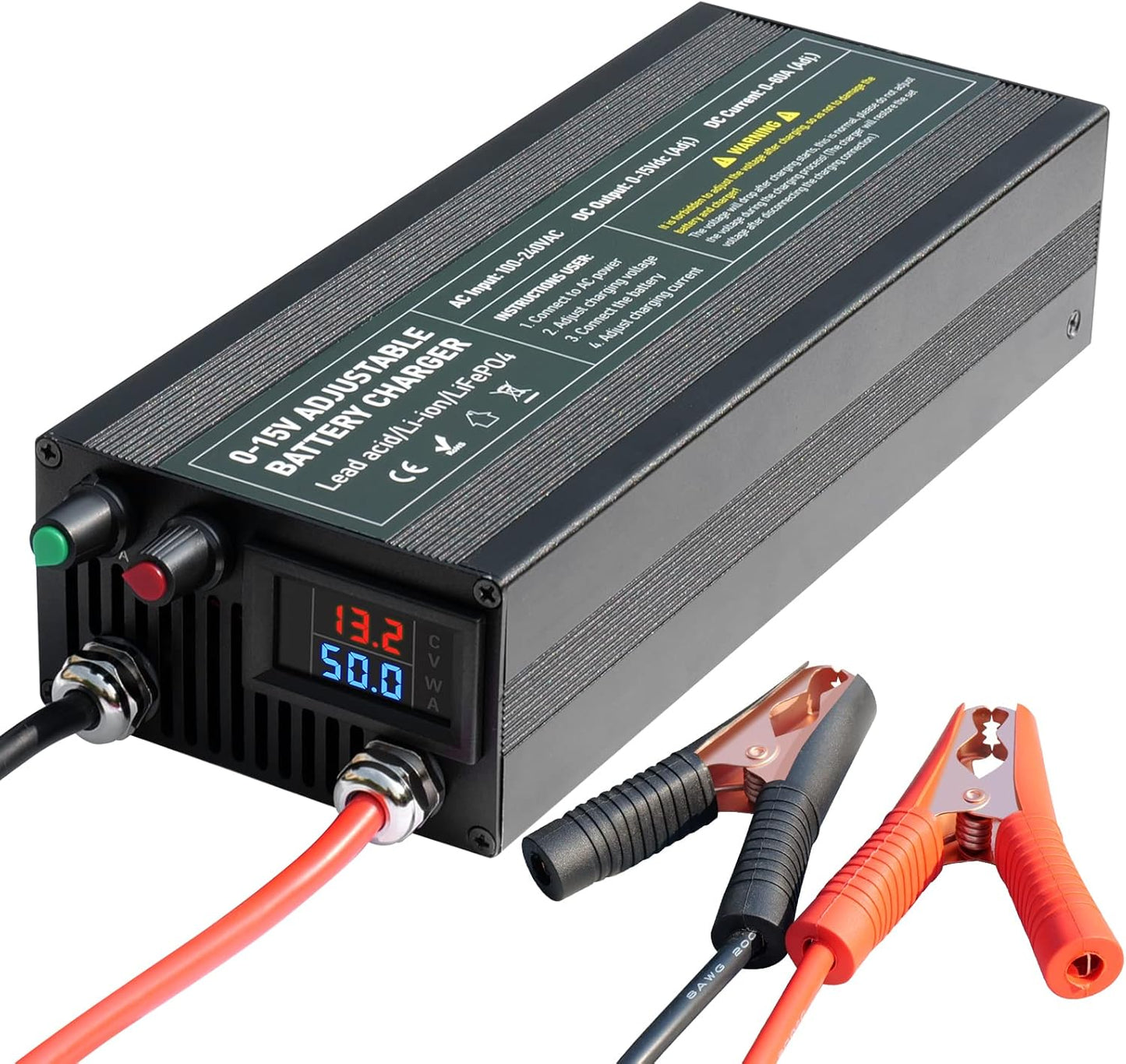

C60A 12V High Power Lifepo4 Charger Smart Battery Charger Maintainer with 0-15V Adjustable Current and Voltage, 12.6V Portable Power Adapter for 14.6V LiFePO4 Lithium Iron Rechargeable Battery(60A)

Overview

• Brand : Capacity.Li
• Color : black
• Product Dimensions : 9.2"D x 3.8"W x 2.2"H
• Item Weight : 1.8 Kilograms
• Output Voltage : 15 Volts (AC)

About this item

• ✔【Designed for Lithium-Ion Batteries】Capacity. Li 12.6V 14.6V 60A LiFePO4 Lithium Battery Smart Charger is specially designed for 12.8V LiFePO4 battery or 12.6V Li-ion battery, the voltage is adjustable, the range is 0-15V adjustable. Do not use the charger on a metal surface platform. Buyers have any questions please email me. We will help you solve it as soon as possible.
• ✔【High Efficiency Charging】Constant current 60A, constant voltage about 14.6V/12.6V, very suitable for large capacity LIFEPO4 battery or lithium battery charging. A 12V100AH ​​battery is fully charged in just 2 hours, while a 10-amp multi-function charger takes 10 hours to fully charge a 100Ah battery. enough current. The current is adjustable from 0-60A. It is recommended to charge the charger with a current of about 55A to prolong the life of the charger.
• ✔【Multiple Protection】Capacity. Li 12V 60A fast car lithium battery charger has multiple protections, and the 60A charger has over temperature/overvoltage/short circuit/overcurrent/low voltage protection to prevent damage from misoperation. (!!!Note: The fan will automatically stop running for a few minutes after a power outage.)

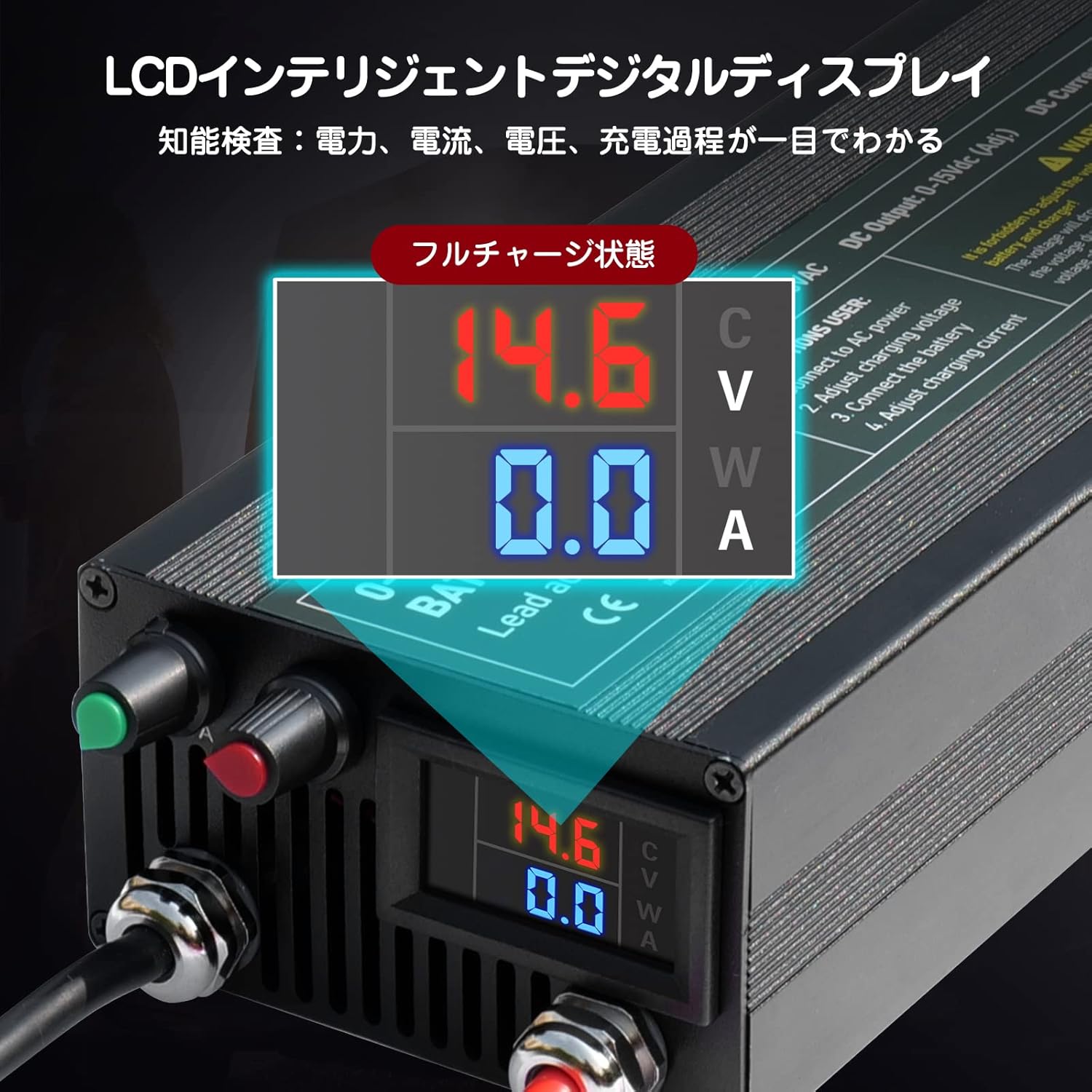

• ✔【Easy operation, indicator light is visible】Connect the + and - alligator clips of the charger (other interfaces can be customized) to the battery, as + to +, - to -. Then plug the input cable into the charger and connect the input power. Intuitive LED indicators provide intuitive charge status feedback and diagnostic information. See notes below.
• ✔【High Quality Material】Our lithium battery charger is made of aluminum alloy, with surface oxidation treatment, high hardness, anti-drop and moisture-proof, anti-oxidation, built-in cooling fan, keep the charger itself cool. Cooling protects your charger and battery. Charging is safe. Intelligent circuit chip, improve charging conversion rate, stabilize discharge voltage, charge better than ordinary chargers, more durable, weighs about 1.8KG,
• ✔【Special instructions for the 60A charger】: first plug the charger into the power supply-----look at the voltage---adjust the voltage-----then connect the load-----and then adjust the current. Step1: Do not connect the battery to the charger, turn on the power first, adjust the voltage knob to adjust the voltage, refer to the voltage display at the top of the display, (4S lifepo4 battery 3.65 v*4=14.6V, 3S lithium battery 4.2v *3=12.6V) , adjust to the voltage you need.
• ✔【Step2】: Adjust the current to the minimum. After connecting the battery, adjust the current from small to large to the current you need. (It is not allowed to adjust the voltage knob again during the charging process, otherwise there will be overcharge or undercharge, which may burn the host at your own risk.) If the current on the display becomes zero, it means it is fully charged.
• ✔【Charging】: During the charging process, the voltage of the display screen will drop, which is a normal phenomenon. Do not adjust the voltage of the charger while charging. In order to charge the battery with constant voltage, it is normal for the voltage of the charger itself to fluctuate. Adjust the voltage and current for the first time. No further adjustment is required later. If you do not understand, please consult customer service! Video connection: https://youtu.be/I0G-c5XRzAI
• ✔【Note】：To extend the life of the charger. The charger has a voltage of 220V, and the maximum recommended current is 90%, for example, 60A. It is most suitable to adjust it to about 54A. The maximum recommended voltage and current of 110V is 80%, and the maximum recommended voltage and current of 100V is 70%.
